Description

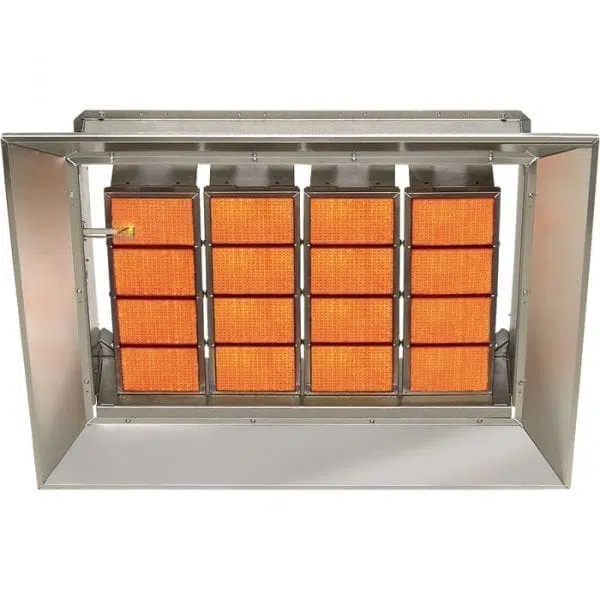

SG14-N 140,000 Btu/Hr natural gas direct spark ignition ceramic infrared heater
Model | Gas Type | Input Btu/Hr | No. of Burners | Min. Mounting Height (Feet) |
Burner Pressure (water column) |
Supply Pressure (water column) Min. Max. |
SG14-N | NAT | 140,000 | 4 | 17 | 6″ | 7″ 14″ |
- Ignition Type: Direct Spark Ignition
- Supply Voltage: 115 Volt
- Amp Draw: 0.40 amps
- Gas Connection: 1/2″ NPT Female
- See Specifications for minimum clearance dimensions
- Usually ships in 8-10 days
Ceramic Infrared Heating is the answer for spot or area heating and for total building heating needs. It is also ideal for the replacement of existing ceramic heaters. SunStar Ceramic Heaters heat like the sun by transferring radiant heat energy directly into the area to be heated and creating a warm comfort zone at the floor level. This extremely efficient method of heating can result in fuel savings of between 30% and 50% when compared to forced air convection heating
- Dimpled tile assembly design for increased radiant efficiency
- Design certified for angle mounting up to 30 degrees
- Equipped with 100% gas shut-off safety control
- Constructed of aluminized steel for corrosion-resistance
- Aluminum reflectors designed to maximize radiant output
- Optional protective radiant screen (sold separately)
- Compact size for UPS shipping
- No assembly required
- Heaters are 100% tested prior to shipment
- Manufactures warranty 12 months parts no labor
This heater is for Indoor Installation only and can be used in Unvented mode. The term Unvented actually means Indirect Vented. While the products of combustion are expelled into the building, national codes require 4 CFM/1000 BTU of heater input ventilation in the building to dilute these products of combustion. This ventilation may be provided by gravity or mechanical means.
