| Weight | 560 oz |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Btu Hr Input |

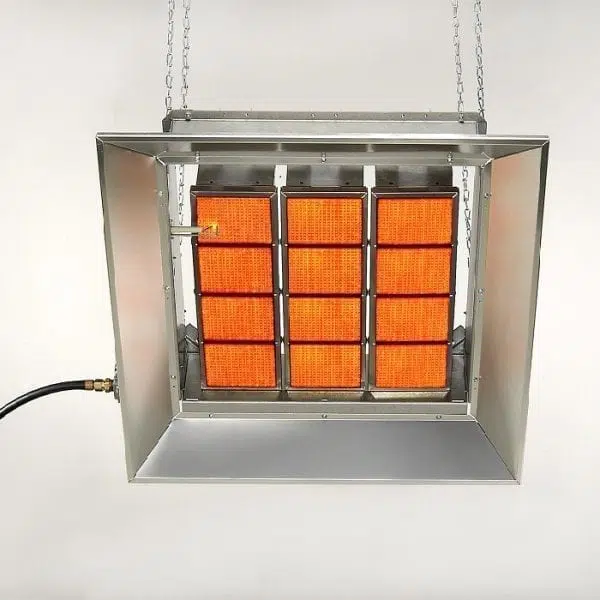

SG10 100,000 Btu/Hr direct spark ignition ceramic infrared heater
| Model | Gas Type | Input Btu/Hr | No. of Burners | Min. Mounting Height (Feet) |
Burner Pressure (water column) |
Supply Pressure (water column) Min. Max. |
| SG10-N | NAT | 100,000 | 3 | 15 | 6" | 7" 14" |
| SG10-L | LP | 100,000 | 3 | 15 | 10" | 11" 14" |
Ceramic Infrared Heating is the answer for spot or area heating and for total building heating needs. It is also ideal for the replacement of existing ceramic heaters. SunStar Ceramic Heaters heat like the sun by transferring radiant heat energy directly into the area to be heated and creating a warm comfort zone at the floor level. This extremely efficient method of heating can result in fuel savings of between 30% and 50% when compared to forced air convection heating
This heater is for Indoor Installation only and can be used in Unvented mode. The term Unvented actually means Indirect Vented. While the products of combustion are expelled into the building, national codes require 4 CFM/1000 BTU of heater input ventilation in the building to dilute these products of combustion. This ventilation may be provided by gravity or mechanical means.
Installation Manual
SG Specifications
$501.40
