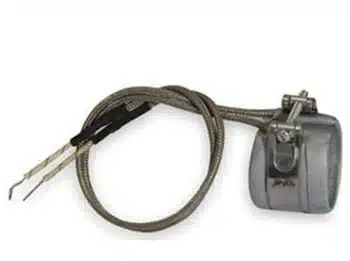

120V 150W 1" id x 1-1/2" w mica nozzle band with 12" fiberglass leads with 10" SS overbraid
- Watt Density: 47 watts per square inch
- Supplied with low profile clamping strap
- Availability: Usually ships in 1 to 2 days
- Watt Density Guide™(55 W/in2 is recommended maximum)
A mica core produces a thin, efficient heater. Heat from the precisely wound Nichrome element is quickly transferred to the working surface for fast heat-up and response. Mica provides excellent dielectric strength and heat transfer capability for long heater life. The mica core is encased in a continuous corrosion resistant sheath and formed. All full mica band heaters are designed with closed ends to protect against contamination. Maximum sheath temperature is 800F.
