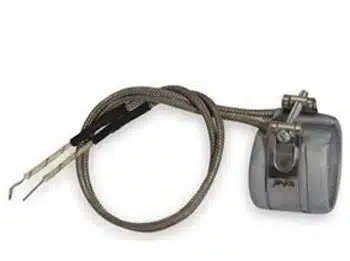

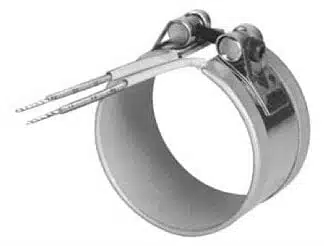

A mica core produces a thin, efficient heater. Heat from the precisely wound Nichrome element is quickly transferred to the working surface for fast heat-up and response. Mica provides excellent dielectric strength and heat transfer capability for long heater life. The mica core is encased in a continuous corrosion resistant sheath and formed. All full mica band heaters are designed with closed ends to protect against contamination. Maximum sheath temperature is 800F.
- Longer Leads
- Post Terminals With or Without Terminal Box
- Metal Braid or Conduit Over Leads
- Ground Wire
- Holes or Cut Outs
- Three Terminal or Leads for Dual Voltage or Three Phase
- Rectangular or Segment Band Heaters (provide drawing)
Call us if you can not find the exact Mica Band Heater you are looking for (801) 544-4236.
