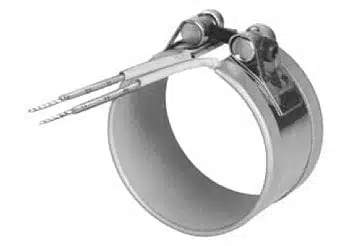

GBE01A01A-00004 – Band Heater


120V 125W 1″ id x 1″ w mica band with 12″ fiberglass leads

usually ships in 3-4 weeks

SKU: GBE01A01A-00004 Category:


120V 125W 1″ id x 1″ w mica band with 12″ fiberglass leads

A mica core produces a thin, efficient heater. Heat from the precisely wound Nichrome element is quickly transferred to the working surface for fast heat-up and response. Mica provides excellent dielectric strength and heat transfer capability for long heater life. The mica core is encased in a continuous corrosion resistant sheath and formed. All full mica band heaters are designed with closed ends to protect against contamination. Maximum sheath temperature is 800F.

Additional Variations;
  • Longer Leads
  • Post Terminals With or Without Terminal Box
  • Metal Braid or Conduit Over Leads
  • Ground Wire
  • Holes or Cut Outs
  • Three Terminal or Leads for Dual Voltage or Three Phase
  • Rectangular or Segment Band Heaters (provide drawing)
Call us if you can not find the exact Mica Band Heater you are looking for (801) 544-4236.
