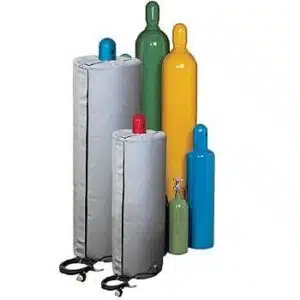

Gas cylinder heater for gas cylinder 15" dia. x 43" high by Briskheat - HCW15431501

$2,070.00

120V 150W Class 1 Div 1 heater for gas cylinder 15" dia. x 43" high. Usually ships in 3-4 weeks.

SKU: HCW15431501 Categories: ,

Description

Product Highlights:
  • Improves Process Control and Reduces Wasted Condensed Gas
  • Creates convection current
  • Increases pressure inside cylinder
  • Class I Division 1 Groups B, C and D
  • Gases Know to Benefit from This Process: SF 6, Propane, Nitrogen, Oxygen, BCI 3, WF 6, and HF
  • Fits Most Gas Cylinders
  • Full Surface Coverage
  • Insulation Reduces Heat Loss
Specifications:
  • Self-regulating grounded heating element
  • 150F (66C) maximum exposure temperature on heating surface
  • Available in 120 and 240 VAC
  • Frequency range: 50-60Hz
  • Insulation thickness Sides: 2.0" (51mm) Top: 0.5" (13mm)
  • Ambient temperature range: 30F to 95F (-1C to 35C)

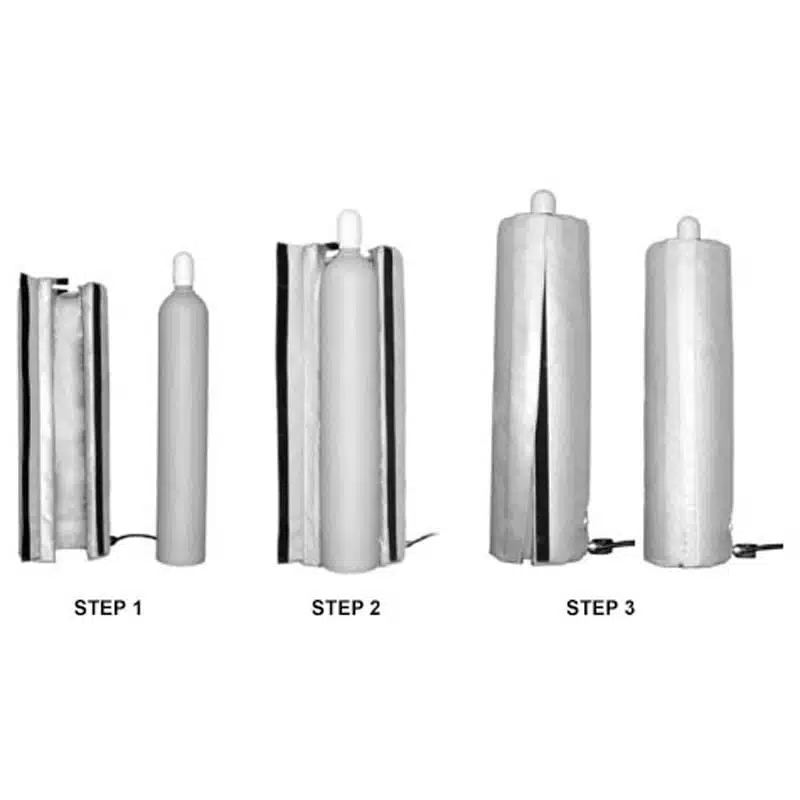

  • Closure: hook and loop fastener like VELCRO ®
  • Moisture and oil resistant
  • Capable of being used outdoors
  • Power lead type: Teck 90 cable
  • Power lead length: 10-foot (3m)
  • Optional cylinder base insulation pad and valve cover to further reduce heat loss

Additional information

Weight 240 oz
Dimensions 1 × 1 × 1 in
